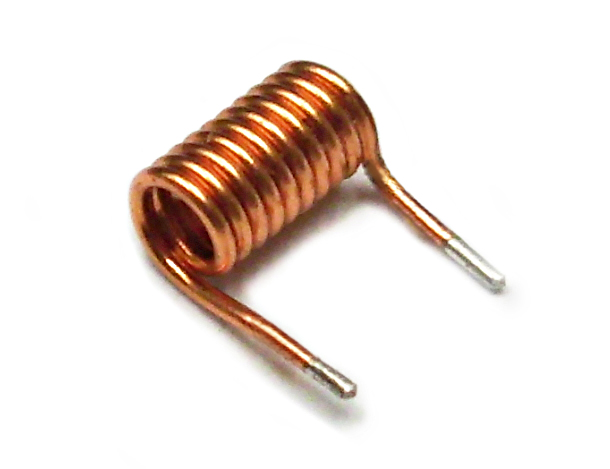

Spring Coil

This low cost inductor can be used in many high frequency applications. Wound to customer's specification. Rated current can be up to 50 Amps. Examples of applications are communication systems, television circuits, test equipments, microwave equipment, AM/FM radio receivers/transmitters, and band pass filters.

No standard specification. Custom designs are welcome.
Diameter can be as small as 1mm.
Please submit full specification and drawing while inquires.

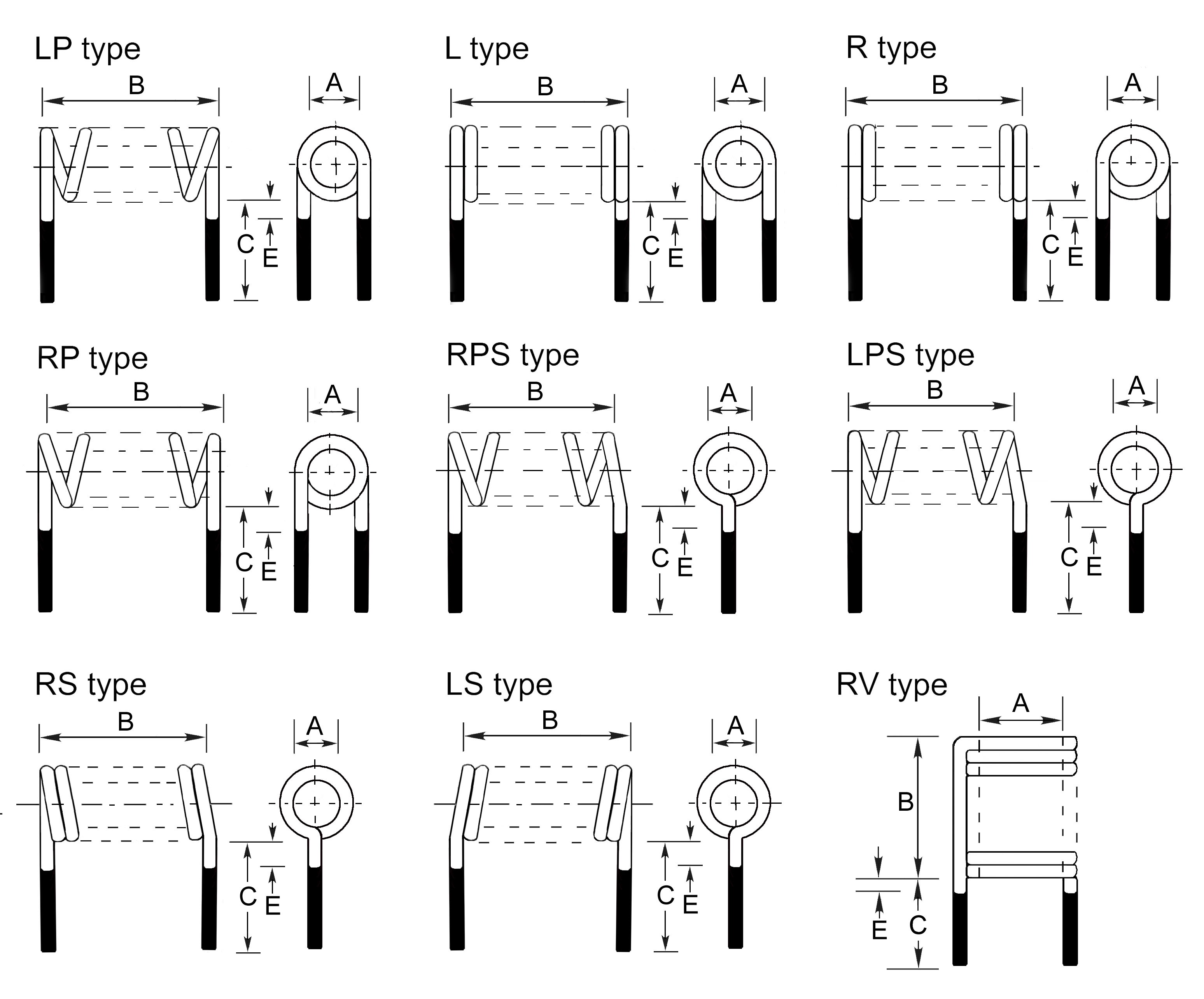

• L –Left Turn
• R –Right Turn
• P –Pitch
• S –Centre
• V –Vertical Mount

The above information are for reference only.
