Power Over Ethernet (PoE), DC/DC Converter

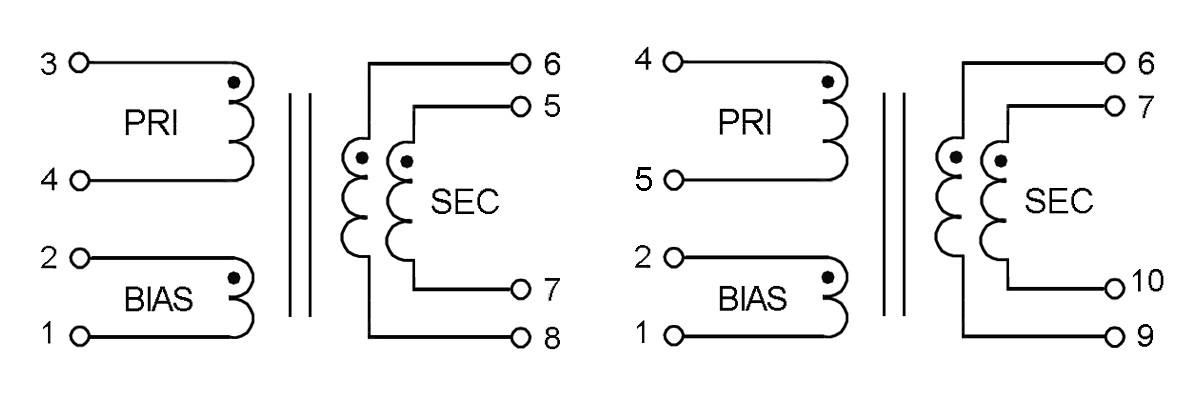

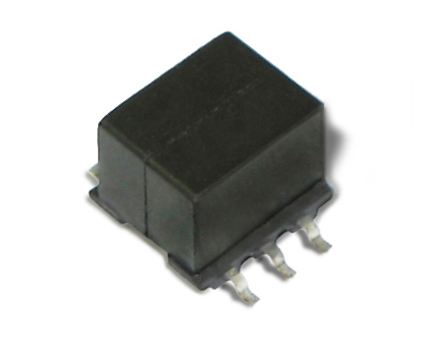

SANKYO is pleased to offer this series of power transformers designed for isolated flyback DC/DC converter applications.
Utilizing industry standard style footprint these transformers are LEAD-free RoHS compliant. Please contact us for custom designs.
● Topology﹕Flyback transformer with continuous mode
● Frequency﹕250 kHz

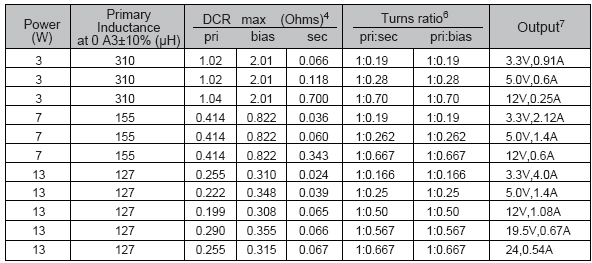

● Power﹕3W,7W,13W
● RoHs compliant
The above information are for reference only.
